Bone

The bone is a closed surface of 12,088 triangles. A long, slender shaft joins a pair of rounded lobes at each end. The model comes from the hybrid-octree meshing work of Tong, Halilaj, and Zhang [1], which meshes it with all-hexahedral elements.

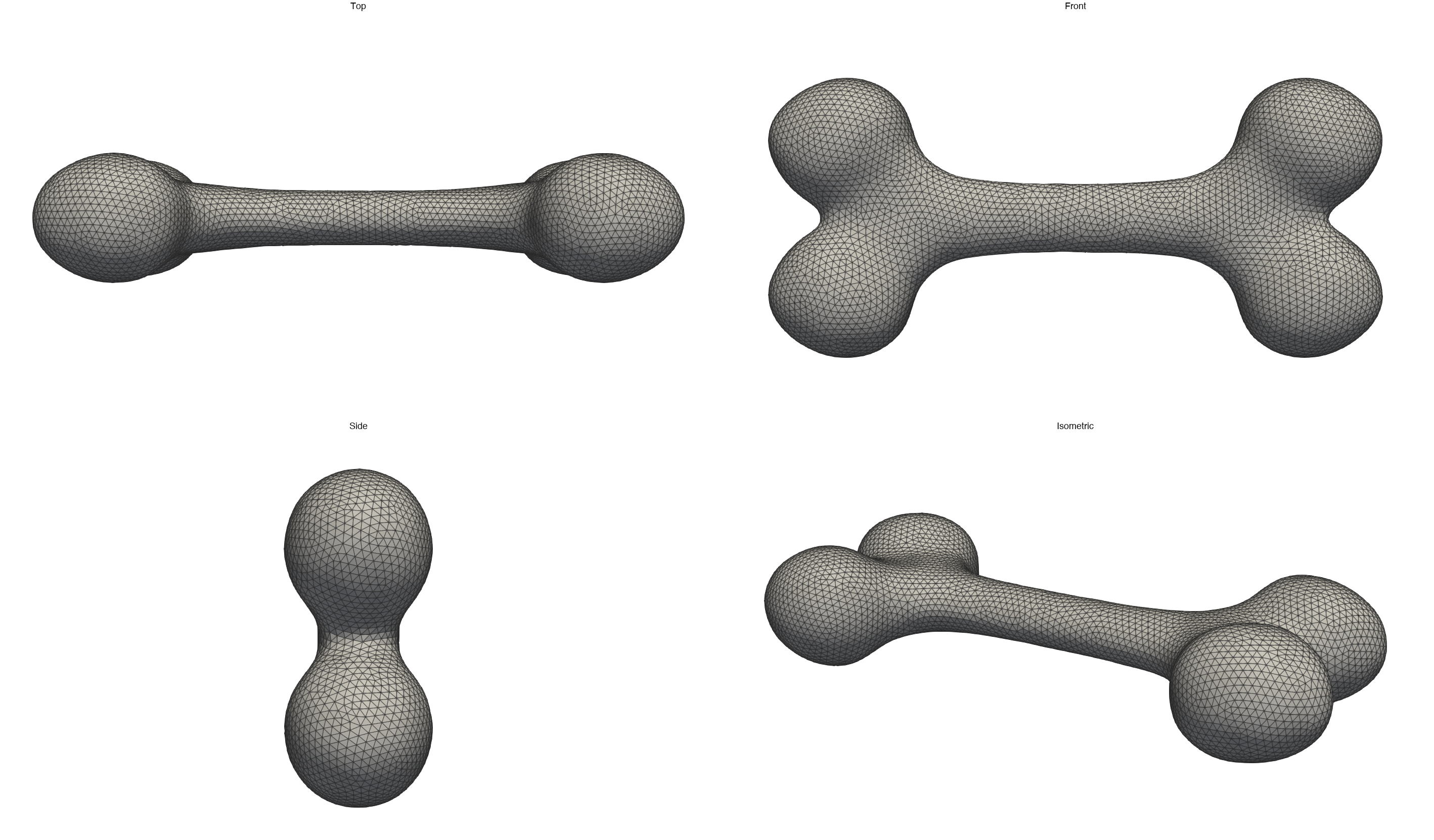

Figure: The bone surface, 12,088 triangles, in the top, front, side, and isometric views. The triangles are close to uniform. The longest edge is about twice the shortest. ParaView 5.10.1 makes the renders from bone_tri_cleaned.stl (see Downloads). They come from bone_render.py, and bone_render_quad.py composes them.

The Tong 2024 is the baseline in this book. This page records the baseline: the settings that produced it, its size, and its element quality. Then it meshes the same surface with automesh and compares the two. The Tong 2024 review describes the method.

The method refines an octree by surface curvature and by wall thickness. It turns the octree into hexahedra, then projects the boundary onto the surface. The code rescales each model so that its longest side spans 100 units. All lengths and volumes below use that scale.

The Baseline Settings

The code, HybridOctree_Hex v1.0 [1], ships with the settings below. Four are constants in Initialization.h: C_THRES, H_THRES, CELL_DETECT, and VOXEL_SIZE. The curvature formula and the level of the deepest rung are fixed inside HexGen.cpp. The published mesh comes from these settings, as Reproducing the Baseline shows.

Curvature. At each surface vertex, the code looks at every edge that meets the vertex. Two triangles share each edge. The angle $\theta$ between them equals $\pi$ on a flat surface. The code squares the deviation $(\theta -\pi )$ and sums it over the edges. The sum has units of radians squared, and nothing normalizes it. A vertex with many small triangles around it therefore gathers more terms than one with a few large triangles.

C_THRES. This is the curvature ladder. It has five rungs in ascending order. Each rung guards one octree level. A cell at that level splits when a vertex inside it carries a curvature above the rung.

H_THRES. This is the thickness ladder, over the same five levels. Its rungs descend. The code measures the thickness at each triangle. It casts a ray from the triangle's centroid along its normal, and takes the distance to the opposite surface. A cell splits when a triangle inside it is thinner than the rung. A cell splits when either ladder says so.

CELL_DETECT. This is a search half-width, measured in cell widths from each cell's center. The value 1 tests a box twice the linear extent of the cell. A vertex or triangle up to half a cell outside the cell still splits it. A larger value refines more.

VOXEL_SIZE and LADDER_TOP. VOXEL_SIZE is the base-2 logarithm of the octree's depth budget. The value 9 allows a $512^3$ grid, whose finest cells are $100/512\approx 0.195$ wide. LADDER_TOP is our name for the level of the deepest rung. The code does not name it. It fixes the value in a test, level == 8, inside ComputeCellValue. The value 8 puts the five rungs on levels 4 through 8. The deepest rung guards the step from level 8 to level 9, which is the last the budget allows. Every level-3 cell that meets the surface splits, with no rung at all.

The Reference Mesh

The paper publishes the mesh as bone.vtk. The file bone.inp holds the same mesh in Abaqus format, as C3D8 elements. The nodes and elements have the same coordinates, connectivity, and order in both files. automesh reads the .inp file, so it computes the metrics from that one. See Downloads for both files.

Reproducing the Baseline

We ran the code ourselves, and did not rely on the published mesh alone. The run used HybridOctree_Hex v1.0, which is commit 00e0e82 of 2024-01-16. The commit renames the folder HybridOctree_Hex_v1.0 to HybridOctree_Hex, and its settings match the table above. Later commits change them. The current main is a later version, with a VOXEL_SIZE of 10 and a different C_THRES.

The code comes from the fork hovey/HybridOctree_Hex. We made the fork from the original repository, CMU-CBML/HybridOctree_Hex, and it keeps the full history, so the commit above is in it. The fork also hosts the surface files that this page downloads. Use the folder HybridOctree_Hex at that commit. On the fork's main, the folder HybridOctree_Hex_v1.0 is a modified copy, and not the original code.

git clone --filter=blob:none --no-checkout https://github.com/hovey/HybridOctree_Hex.git
cd HybridOctree_Hex
git checkout 00e0e82
cd HybridOctree_Hex
c++ -std=c++17 -O2 -o HexGen Main.cpp HexGen.cpp Mesh.cpp
mkdir bone
cp "../input boundaries/bone_tri.raw" bone/model.raw
cd bone
../HexGen

The two options on the first line keep the download near 100 MB, where a plain clone of the fork is about 600 MB.

The program reads model.raw from the current directory. The build prints warnings and no errors. We ran it on macOS, on an Apple M1 Pro, with Apple clang 21.0.0.

The first stages took about 52 seconds: 35 seconds for the octree, 5 for the dual mesh, and 12 for the interior mesh. Then the projection step began. It moves the boundary nodes onto the surface, and it guards the quality of the elements as it goes. It starts with a quality bar of 0.01. The first time the mesh meets it, the bar jumps to 0.53. Each time the mesh meets the bar, it writes finalMesh.vtk and raises the bar by 0.01. In our run the bar rose ten times. The mesh written at the tenth step, after 293 iterations and about three minutes, met the bar of 0.61. The program then searched for a mesh that meets 0.62, and did not find one. It does not stop on its own here. We stopped it after nine minutes, and finalMesh.vtk had not changed for the last six.

The script bone_baseline_compare.py compares that file with the published mesh.

The two meshes have the same nodes and the same elements, with the same connectivity, in the same order. The octree and the dual mesh reproduce exactly. Other settings would give a different octree, and so different connectivity. The floor of 0.61 reproduces, and the median and the 5th percentile agree to three digits.

The node positions do not match exactly. None of the 3,202 boundary nodes matches to six digits. They differ by 0.031 on average, and by 0.92 at most, in the units of the 100-unit cube. Of the 7,154 interior nodes, 1,563 match to six digits, and the largest difference is 1.21. The aspect ratio has a few more outliers than the published mesh.

We think the reason is the random step in the projection. The code calls rand() and never seeds it. The generator differs between platforms. For example, RAND_MAX is 2,147,483,647 on macOS, and the compiler warns about it. We did not test this. We reproduced the octree, the connectivity, the quality floor, and the shape of the quality distribution. We did not reproduce the exact position of every node.

Minimum Scaled Jacobian

automesh computes the quality of every element:

automesh metrics -i bone.inp -o bone_reference_metrics.csv

The CSV has one row per element, in the order of the mesh. ParaView paints the elements by the Minimum Scaled Jacobian column.

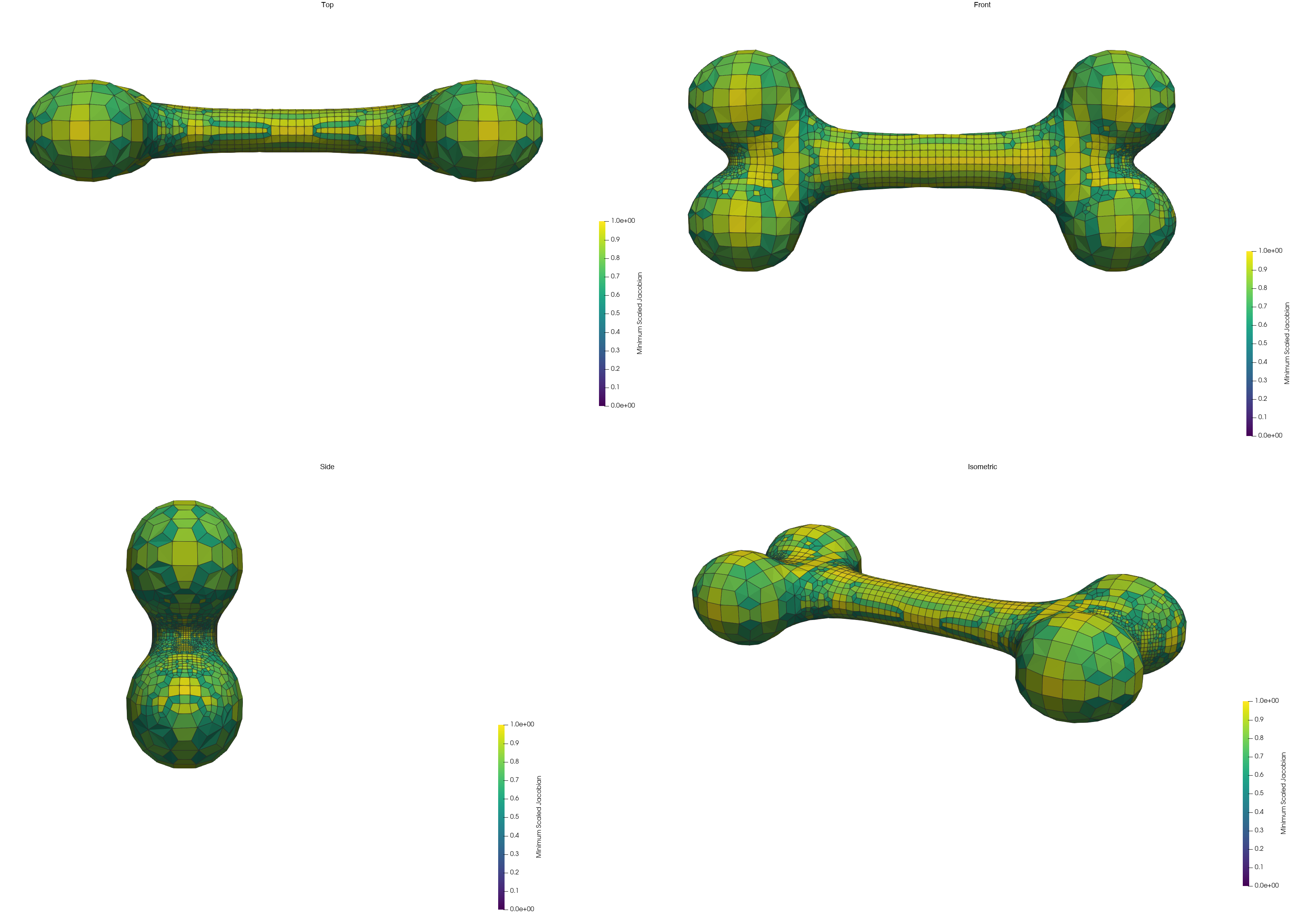

Figure: The reference bone mesh from the Tong 2024 baseline, painted by Minimum Scaled Jacobian on a fixed 0 to 1 scale. The four panels show the top, front, side, and isometric views. The mesh's own values run from 0.61 to 1.0, so no element reaches the dark end of the scale. The elements are smallest on the shaft and at the necks where the shaft meets each lobe. The lobes stay coarse. ParaView 5.10.1 makes the renders. They come from bone_render.py, and bone_render_quad.py composes them.

Quality Metrics

automesh computes four measures for each element: Minimum Scaled Jacobian, Maximum Aspect Ratio, Maximum Skew, and Element Volume [3].

Figure: Element quality for the reference bone mesh, all 8,619 elements. Minimum Scaled Jacobian is at top left, Maximum Aspect Ratio at top right, Maximum Skew at bottom left, and Element Volume at bottom right. Counts use a log scale, and the aspect ratio uses a log axis as well. The figure comes from bone_quality_histograms.py, which follows the style of the RVE histograms.

The paper's title promises Jacobian control, and the mesh shows it. No element falls below a scaled Jacobian of 0.61. The values pile up at that floor, where 2,196 elements (about a quarter) sit at or below 0.62. They pile up again at 1.0, where 1,277 elements sit at or above 0.99. The median is 0.791.

The aspect ratio has a long tail. The median is 1.95, and 431 elements exceed 5. Only 34 exceed 10, and the worst reaches 21.25. The skew has a median of 0.178, and its 95th percentile is 0.497.

The element volumes span more than three orders of magnitude, from 0.0070 to 39.64, with a median of 1.48. The octree refines toward the shaft and the necks.

Meshing with automesh

automesh meshes the same surface, bone_tri_cleaned.stl, with two commands. The first builds a uniform lattice. The second builds an adaptive octree. Both put the mesh in the frame of the reference, so that lengths and volumes compare directly. The scale and translate options do this. The scale is $100/0.947288=105.5645168$, where 0.947288 is the longest side of the bone in the units of the STL. The translation centers the bone in the 100-unit cube. The uniform spacing is in the units of the STL, and $0.01563025\times 105.5645168=1.65$.

automesh mesh hex -i bone_tri_cleaned.stl -o bone_uniform.vtu \
    --uniform 0.01563025 \
    --xscale 105.5645168 --yscale 105.5645168 --zscale 105.5645168 \
    --xtranslate -3.0485977 --ytranslate -2.8101274 --ztranslate -2.7887506 \
    --metrics bone_uniform_metrics.csv

automesh mesh hex -i bone_tri_cleaned.stl -o bone_octree.vtu --scale 7 \
    --xscale 105.5645168 --yscale 105.5645168 --zscale 105.5645168 \
    --xtranslate -3.0485977 --ytranslate -2.8101274 --ztranslate -2.7887506 \
    --metrics bone_octree_metrics.csv

The lattice gives 8,379 elements and 10,271 nodes in about 2 seconds. The octree gives 9,267 elements and 11,381 nodes in about 1.5 seconds. Both are close to the size of the reference. The --metrics option writes the quality of every element, in the same four measures as before. These numbers come from automesh 0.4.7.

Comparison

The automesh meshes are valid. No element is inverted. The bulk of each distribution is as good as the reference, or better. The median is higher. The aspect ratio is far lower, with no element above 10. The skew is close.

The worst case is the difference. The reference has no element below 0.61. The lattice has a worst element at 0.275, and the octree at 0.304. The lattice has 191 elements below 0.6, and the octree has 1,117.

The reference is also graded, where the lattice is not. Its element volumes reach 39.64, while the lattice tops out at 6.64. The octree grades, and reaches 18.96.

Figure: The automesh uniform-lattice mesh, painted by Minimum Scaled Jacobian on the same 0 to 1 scale and in the same four views as the reference. The elements are close to one size over the whole bone. A few dark elements, with values as low as 0.28, sit scattered over the surface. The figure comes from bone_render.py, and bone_render_quad.py composes it.

Figure: The automesh adaptive-octree mesh, painted by Minimum Scaled Jacobian on the same scale and in the same four views. Unlike the lattice, the octree grades. The elements are fine on the shaft and at the necks, and coarse on the lobes, as in the reference. Several dark elements sit at the necks, where the element size changes. The view shows only the boundary. Of the 1,117 elements below 0.6, 606 are interior, and they do not appear here. The cut view in the next section shows them. The figure comes from the same two scripts.

Figure: Element quality for the reference (solid, orange), the automesh uniform lattice (dashed, blue), and the automesh adaptive octree (dotted, green). The panels match the earlier figure. The reference has a hard floor at 0.61 in Minimum Scaled Jacobian, and the automesh curves have a tail toward 0.3. The lattice's tail is thin, and the octree's is fatter. The automesh aspect ratios stay below about 6.5, where the reference reaches 21. The figure comes from bone_quality_histograms.py.

Where the Low Elements Are

A hex face that only one element uses lies on the boundary. The script bone_tail.py splits the elements of each mesh into those that touch the boundary and those that do not. In all three meshes, every element that touches the boundary has exactly one boundary face.

On the lattice, the interior is nearly ideal, with a median of 0.983. Of the 191 elements below 0.6, 185 (97%) touch the boundary. All 34 elements below 0.5 do. The low elements are a boundary-fit problem.

On the octree, the tail has a second source. Of the 1,117 elements below 0.6, 511 touch the boundary, and 606 are interior. The transition elements in the interior add poor elements of their own.

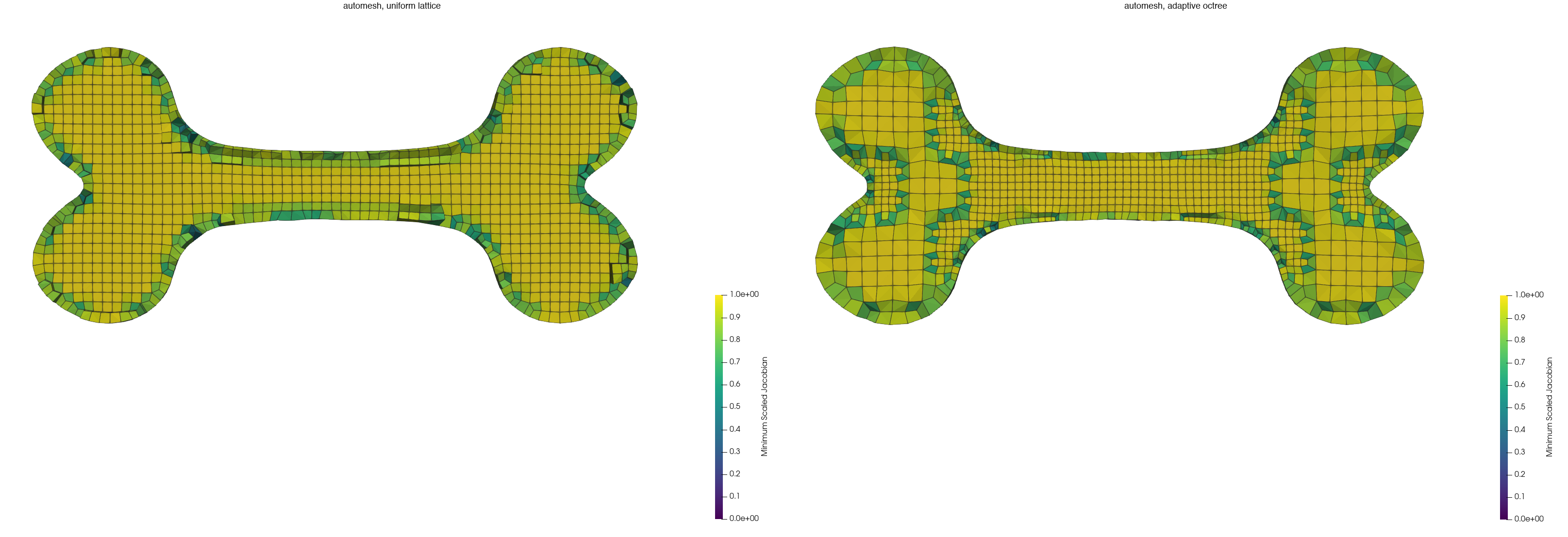

Figure: A cut through the middle of the bone, at $y\approx 50$, for the automesh uniform lattice (left) and adaptive octree (right). Both use the same 0 to 1 scale. An element that crosses the plane stays whole, so the cut edge is ragged. On the lattice, the interior is a regular grid of elements near 1.0. The low values form a thin ring at the boundary, with a few dark elements in it. On the octree, the interior grades from coarse elements in the lobes to fine elements in the shaft. The transitions at the necks hold teal and green elements, and the boundary has a ring of low values as well. The figure comes from bone_render.py with --cut, and bone_render_quad.py composes it.

A typical boundary element is fine. The boundary median is about the same as the reference's. Only the worst boundary elements are poor. The reference holds its floor of 0.61 in both the boundary and the interior. That is consistent with a fit that guards the quality of each element. We have not confirmed this in the code of the paper.

What Did Not Help

The script bone_sweep.py runs 56 configurations of automesh mesh hex on the bone. All 56 runs finished, and none failed. The whole sweep took under two minutes, about 1 minute and 48 seconds, with four runs in parallel. No configuration without smoothing raises the worst element above 0.31.

The worst element rests on a handful of boundary elements, so it is noisy. On the lattice it moves between 0.16 and 0.29 as the spacing changes. The count below 0.6 is steadier.

Smoothing does not close the gap. It moves boundary nodes off the surface, which is why the volume shrinks. On the lattice, a few iterations lift the worst element, but they raise the number of elements below 0.6.

FRAME=(--xscale 105.5645168 --yscale 105.5645168 --zscale 105.5645168
       --xtranslate -3.0485977 --ytranslate -2.8101274 --ztranslate -2.7887506)

#  1. octree: scale 4
automesh mesh hex -i bone_tri_cleaned.stl -o run01.vtu --scale 4 "${FRAME[@]}" --metrics run01.csv
#  2. octree: scale 5
automesh mesh hex -i bone_tri_cleaned.stl -o run02.vtu --scale 5 "${FRAME[@]}" --metrics run02.csv
#  3. octree: scale 6
automesh mesh hex -i bone_tri_cleaned.stl -o run03.vtu --scale 6 "${FRAME[@]}" --metrics run03.csv
#  4. octree: scale 7
automesh mesh hex -i bone_tri_cleaned.stl -o run04.vtu --scale 7 "${FRAME[@]}" --metrics run04.csv
#  5. octree: scale 8
automesh mesh hex -i bone_tri_cleaned.stl -o run05.vtu --scale 8 "${FRAME[@]}" --metrics run05.csv
#  6. octree: scale 10
automesh mesh hex -i bone_tri_cleaned.stl -o run06.vtu --scale 10 "${FRAME[@]}" --metrics run06.csv
#  7. balance: scale 7, soft, weak
automesh mesh hex -i bone_tri_cleaned.stl -o run07.vtu --scale 7 "${FRAME[@]}" --metrics run07.csv
#  8. balance: scale 7, soft, strong
automesh mesh hex -i bone_tri_cleaned.stl -o run08.vtu --scale 7 --strong "${FRAME[@]}" --metrics run08.csv
#  9. balance: scale 7, snap, weak
automesh mesh hex -i bone_tri_cleaned.stl -o run09.vtu --scale 7 --snap "${FRAME[@]}" --metrics run09.csv
# 10. balance: scale 7, snap, strong
automesh mesh hex -i bone_tri_cleaned.stl -o run10.vtu --scale 7 --snap --strong "${FRAME[@]}" --metrics run10.csv
# 11. tolerance: scale 5, tolerance 1
automesh mesh hex -i bone_tri_cleaned.stl -o run11.vtu --scale 5 --tolerance 0.00947288 "${FRAME[@]}" --metrics run11.csv
# 12. tolerance: scale 5, tolerance 0.3
automesh mesh hex -i bone_tri_cleaned.stl -o run12.vtu --scale 5 --tolerance 0.00284186 "${FRAME[@]}" --metrics run12.csv
# 13. tolerance: scale 5, tolerance 0.1
automesh mesh hex -i bone_tri_cleaned.stl -o run13.vtu --scale 5 --tolerance 0.00094729 "${FRAME[@]}" --metrics run13.csv
# 14. tolerance: scale 5, tolerance 0.03
automesh mesh hex -i bone_tri_cleaned.stl -o run14.vtu --scale 5 --tolerance 0.00028419 "${FRAME[@]}" --metrics run14.csv
# 15. tolerance: scale 5, tolerance 0.01
automesh mesh hex -i bone_tri_cleaned.stl -o run15.vtu --scale 5 --tolerance 0.00009473 "${FRAME[@]}" --metrics run15.csv
# 16. tolerance: scale 6, tolerance 1
automesh mesh hex -i bone_tri_cleaned.stl -o run16.vtu --scale 6 --tolerance 0.00947288 "${FRAME[@]}" --metrics run16.csv
# 17. tolerance: scale 6, tolerance 0.3
automesh mesh hex -i bone_tri_cleaned.stl -o run17.vtu --scale 6 --tolerance 0.00284186 "${FRAME[@]}" --metrics run17.csv
# 18. tolerance: scale 6, tolerance 0.1
automesh mesh hex -i bone_tri_cleaned.stl -o run18.vtu --scale 6 --tolerance 0.00094729 "${FRAME[@]}" --metrics run18.csv
# 19. tolerance: scale 6, tolerance 0.03
automesh mesh hex -i bone_tri_cleaned.stl -o run19.vtu --scale 6 --tolerance 0.00028419 "${FRAME[@]}" --metrics run19.csv
# 20. tolerance: scale 6, tolerance 0.01
automesh mesh hex -i bone_tri_cleaned.stl -o run20.vtu --scale 6 --tolerance 0.00009473 "${FRAME[@]}" --metrics run20.csv
# 21. tolerance: scale 7, tolerance 1
automesh mesh hex -i bone_tri_cleaned.stl -o run21.vtu --scale 7 --tolerance 0.00947288 "${FRAME[@]}" --metrics run21.csv
# 22. tolerance: scale 7, tolerance 0.3
automesh mesh hex -i bone_tri_cleaned.stl -o run22.vtu --scale 7 --tolerance 0.00284186 "${FRAME[@]}" --metrics run22.csv
# 23. tolerance: scale 7, tolerance 0.1
automesh mesh hex -i bone_tri_cleaned.stl -o run23.vtu --scale 7 --tolerance 0.00094729 "${FRAME[@]}" --metrics run23.csv
# 24. tolerance: scale 7, tolerance 0.03
automesh mesh hex -i bone_tri_cleaned.stl -o run24.vtu --scale 7 --tolerance 0.00028419 "${FRAME[@]}" --metrics run24.csv
# 25. tolerance: scale 7, tolerance 0.01
automesh mesh hex -i bone_tri_cleaned.stl -o run25.vtu --scale 7 --tolerance 0.00009473 "${FRAME[@]}" --metrics run25.csv
# 26. uniform: spacing 1.2
automesh mesh hex -i bone_tri_cleaned.stl -o run26.vtu --uniform 0.01136746 "${FRAME[@]}" --metrics run26.csv
# 27. uniform: spacing 1.3
automesh mesh hex -i bone_tri_cleaned.stl -o run27.vtu --uniform 0.01231474 "${FRAME[@]}" --metrics run27.csv
# 28. uniform: spacing 1.4
automesh mesh hex -i bone_tri_cleaned.stl -o run28.vtu --uniform 0.01326203 "${FRAME[@]}" --metrics run28.csv
# 29. uniform: spacing 1.5
automesh mesh hex -i bone_tri_cleaned.stl -o run29.vtu --uniform 0.01420932 "${FRAME[@]}" --metrics run29.csv
# 30. uniform: spacing 1.6
automesh mesh hex -i bone_tri_cleaned.stl -o run30.vtu --uniform 0.01515661 "${FRAME[@]}" --metrics run30.csv
# 31. uniform: spacing 1.65
automesh mesh hex -i bone_tri_cleaned.stl -o run31.vtu --uniform 0.01563025 "${FRAME[@]}" --metrics run31.csv
# 32. uniform: spacing 1.7
automesh mesh hex -i bone_tri_cleaned.stl -o run32.vtu --uniform 0.01610390 "${FRAME[@]}" --metrics run32.csv
# 33. uniform: spacing 1.8
automesh mesh hex -i bone_tri_cleaned.stl -o run33.vtu --uniform 0.01705118 "${FRAME[@]}" --metrics run33.csv
# 34. uniform: spacing 1.9
automesh mesh hex -i bone_tri_cleaned.stl -o run34.vtu --uniform 0.01799847 "${FRAME[@]}" --metrics run34.csv
# 35. uniform: spacing 2.0
automesh mesh hex -i bone_tri_cleaned.stl -o run35.vtu --uniform 0.01894576 "${FRAME[@]}" --metrics run35.csv
# 36. uniform: spacing 2.2
automesh mesh hex -i bone_tri_cleaned.stl -o run36.vtu --uniform 0.02084034 "${FRAME[@]}" --metrics run36.csv
# 37. smooth: uniform 1.65, Taubin 5
automesh mesh hex -i bone_tri_cleaned.stl -o run37.vtu --uniform 0.01563025 "${FRAME[@]}" --metrics run37.csv smooth -m Taubin -n 5
# 38. smooth: uniform 1.65, Taubin 5, hierarchical
automesh mesh hex -i bone_tri_cleaned.stl -o run38.vtu --uniform 0.01563025 "${FRAME[@]}" --metrics run38.csv smooth -m Taubin -n 5 --hierarchical
# 39. smooth: uniform 1.65, Taubin 20
automesh mesh hex -i bone_tri_cleaned.stl -o run39.vtu --uniform 0.01563025 "${FRAME[@]}" --metrics run39.csv smooth -m Taubin -n 20
# 40. smooth: uniform 1.65, Taubin 20, hierarchical
automesh mesh hex -i bone_tri_cleaned.stl -o run40.vtu --uniform 0.01563025 "${FRAME[@]}" --metrics run40.csv smooth -m Taubin -n 20 --hierarchical
# 41. smooth: uniform 1.65, Taubin 50
automesh mesh hex -i bone_tri_cleaned.stl -o run41.vtu --uniform 0.01563025 "${FRAME[@]}" --metrics run41.csv smooth -m Taubin -n 50
# 42. smooth: uniform 1.65, Taubin 50, hierarchical
automesh mesh hex -i bone_tri_cleaned.stl -o run42.vtu --uniform 0.01563025 "${FRAME[@]}" --metrics run42.csv smooth -m Taubin -n 50 --hierarchical
# 43. smooth: uniform 1.65, Taubin 100
automesh mesh hex -i bone_tri_cleaned.stl -o run43.vtu --uniform 0.01563025 "${FRAME[@]}" --metrics run43.csv smooth -m Taubin -n 100
# 44. smooth: uniform 1.65, Taubin 100, hierarchical
automesh mesh hex -i bone_tri_cleaned.stl -o run44.vtu --uniform 0.01563025 "${FRAME[@]}" --metrics run44.csv smooth -m Taubin -n 100 --hierarchical
# 45. smooth: uniform 1.65, Laplace 5
automesh mesh hex -i bone_tri_cleaned.stl -o run45.vtu --uniform 0.01563025 "${FRAME[@]}" --metrics run45.csv smooth -m Laplace -n 5
# 46. smooth: uniform 1.65, Laplace 20
automesh mesh hex -i bone_tri_cleaned.stl -o run46.vtu --uniform 0.01563025 "${FRAME[@]}" --metrics run46.csv smooth -m Laplace -n 20
# 47. smooth: scale 7, Taubin 5
automesh mesh hex -i bone_tri_cleaned.stl -o run47.vtu --scale 7 "${FRAME[@]}" --metrics run47.csv smooth -m Taubin -n 5
# 48. smooth: scale 7, Taubin 5, hierarchical
automesh mesh hex -i bone_tri_cleaned.stl -o run48.vtu --scale 7 "${FRAME[@]}" --metrics run48.csv smooth -m Taubin -n 5 --hierarchical
# 49. smooth: scale 7, Taubin 20
automesh mesh hex -i bone_tri_cleaned.stl -o run49.vtu --scale 7 "${FRAME[@]}" --metrics run49.csv smooth -m Taubin -n 20
# 50. smooth: scale 7, Taubin 20, hierarchical
automesh mesh hex -i bone_tri_cleaned.stl -o run50.vtu --scale 7 "${FRAME[@]}" --metrics run50.csv smooth -m Taubin -n 20 --hierarchical
# 51. smooth: scale 7, Taubin 50
automesh mesh hex -i bone_tri_cleaned.stl -o run51.vtu --scale 7 "${FRAME[@]}" --metrics run51.csv smooth -m Taubin -n 50
# 52. smooth: scale 7, Taubin 50, hierarchical
automesh mesh hex -i bone_tri_cleaned.stl -o run52.vtu --scale 7 "${FRAME[@]}" --metrics run52.csv smooth -m Taubin -n 50 --hierarchical
# 53. smooth: scale 7, Taubin 100
automesh mesh hex -i bone_tri_cleaned.stl -o run53.vtu --scale 7 "${FRAME[@]}" --metrics run53.csv smooth -m Taubin -n 100
# 54. smooth: scale 7, Taubin 100, hierarchical
automesh mesh hex -i bone_tri_cleaned.stl -o run54.vtu --scale 7 "${FRAME[@]}" --metrics run54.csv smooth -m Taubin -n 100 --hierarchical
# 55. smooth: scale 7, Laplace 5
automesh mesh hex -i bone_tri_cleaned.stl -o run55.vtu --scale 7 "${FRAME[@]}" --metrics run55.csv smooth -m Laplace -n 5
# 56. smooth: scale 7, Laplace 20
automesh mesh hex -i bone_tri_cleaned.stl -o run56.vtu --scale 7 "${FRAME[@]}" --metrics run56.csv smooth -m Laplace -n 20

What This Means

automesh matches the bulk of the reference and beats it on aspect ratio. It does not match the worst case. The minimum scaled Jacobian is near 0.3, where the reference holds 0.61. The gap sits in the elements on the boundary.

What the study shows. None of the levers that set the size, the scale, the balancing, the fit, the tolerance, or the spacing raises the worst element above about 0.31. Smoothing lifts it to 0.36 at most. It also costs volume and raises the count of elements below 0.6. These levers change how many elements the mesh has. They do not change how bad the worst boundary elements are. For this bone, the result is solid.

What it does not show. The study does not show that one method is the answer. It shows what does not work, where the low elements sit, and how the reference works. The reference method is a ratchet. Its code raises a quality bar in steps of 0.01, up to 0.61 in our run. It moves a boundary node only when the neighboring elements stay above the bar. The hard floor of the reference is that bar.

The study did not try the alternatives. Better initial fitting is one, and issue autotwin/automesh#750 holds the results of Protais, Cherchi, and Livesu. The smooth fit oracle in conspire PR #186 is another. Local topology repair of the worst elements is a third. Any of them could raise the floor without being a ratchet. A quality guard is the one approach we know of that gives a floor by construction. Better fitting improves the distribution, but it cannot promise a floor.

Two guards may be needed. On the lattice, 97% of the elements below 0.6 touch the boundary, so a guard on the boundary fit targets them. On the octree, about half of the tail is interior transition elements: 606 of 1,117. A guard on the boundary alone would leave them. The interior needs the same guard, or better transition templates.

The smallest version. A guarded smoother is the smallest step toward a ratchet. It moves a node toward a better position. It accepts the move only if no neighboring element drops below the current bar. Then it raises the bar and repeats. The smoothing of automesh has no guard today. That is why it inverts elements and shrinks the volume. A guard, together with keeping the boundary nodes on the surface, would fix both faults.

A test we have not run. A prototype on the lattice mesh would show how far a guard goes. It would use the acceptance rule of the reference, and the same steps of 0.01 in the bar. It would report how high the worst element climbs, and how many elements stay below 0.6. If the floor rises toward 0.6, a guard is enough. If it stalls near 0.4, the fit needs more. The issue autotwin/automesh#768 tracks this, with the bone as the benchmark.

Reproduce

The inputs are not committed. See Downloads to get them. From this directory:

PVPYTHON=/Applications/ParaView-5.10.1.app/Contents/bin/pvpython

# the surface figure
for view in top front side iso; do
    $PVPYTHON --force-offscreen-rendering bone_render.py \
        bone_tri_cleaned.stl bone_surface_$view.png --view $view
done
uv run --with pillow bone_render_quad.py bone_surface_top.png \
    bone_surface_front.png bone_surface_side.png bone_surface_iso.png \

# the Minimum Scaled Jacobian figure
automesh metrics -i bone.inp -o bone_reference_metrics.csv
for view in top front side iso; do
    $PVPYTHON --force-offscreen-rendering bone_render.py \
        bone.vtk bone_msj_$view.png --view $view \
        --metrics bone_reference_metrics.csv
done
uv run --with pillow bone_render_quad.py bone_msj_top.png bone_msj_front.png \
    bone_msj_side.png bone_msj_iso.png bone_reference_msj.png

# the histograms of the reference
uv run --with numpy --with matplotlib bone_quality_histograms.py \
    bone_quality_histograms.svg --mesh bone_reference_metrics.csv "Tong 2024"

# the two automesh meshes: the commands in the section above, then
for view in top front side iso; do
    $PVPYTHON --force-offscreen-rendering bone_render.py \
        bone_uniform.vtu bone_uniform_$view.png --view $view \
        --metrics bone_uniform_metrics.csv
done
uv run --with pillow bone_render_quad.py bone_uniform_top.png \
    bone_uniform_front.png bone_uniform_side.png bone_uniform_iso.png \

for view in top front side iso; do
    $PVPYTHON --force-offscreen-rendering bone_render.py \
        bone_octree.vtu bone_octree_$view.png --view $view \
        --metrics bone_octree_metrics.csv
done
uv run --with pillow bone_render_quad.py bone_octree_top.png \
    bone_octree_front.png bone_octree_side.png bone_octree_iso.png \

# a cut through both meshes, side by side
for mesh in uniform octree; do
    $PVPYTHON --force-offscreen-rendering bone_render.py \
        bone_$mesh.vtu bone_cut_$mesh.png --view front --cut \
        --metrics bone_${mesh}_metrics.csv
done
uv run --with pillow bone_render_quad.py bone_cut_uniform.png \
    bone_cut_octree.png bone_cut_msj.png --columns 2 \
    --label "automesh, uniform lattice" --label "automesh, adaptive octree"

# the overlay histograms
uv run --with numpy --with matplotlib bone_quality_histograms.py \
    bone_quality_comparison.svg \
    --mesh bone_reference_metrics.csv "Tong 2024" \
    --mesh bone_uniform_metrics.csv "automesh, uniform lattice" \
    --mesh bone_octree_metrics.csv "automesh, adaptive octree"

# where the low elements are
python3 bone_tail.py bone.inp bone_reference_metrics.csv
python3 bone_tail.py bone_uniform.vtu bone_uniform_metrics.csv
python3 bone_tail.py bone_octree.vtu bone_octree_metrics.csv

# the sweep of 56 runs, about two minutes
python3 bone_sweep.py bone_sweep.tsv

# compare the reproduced baseline with the published mesh, after the run in
# the section Reproducing the Baseline; copy its finalMesh.vtk here first
cp path/to/bone/finalMesh.vtk reproduced_bone.vtk
python3 bone_baseline_compare.py reproduced_bone.vtk bone.vtk

The histogram commands print the extremes in the tables above.

Reference

1. Hua Tong, Eni Halilaj, and Yongjie Jessica Zhang. "HybridOctree_Hex: Hybrid octree-based adaptive all-hexahedral mesh generation with Jacobian control." Journal of Computational Science 78 (2024) 102278. https://doi.org/10.1016/j.jocs.2024.102278. The code is at https://github.com/CMU-CBML/HybridOctree_Hex. The run on this page used commit 00e0e82.
2. Utkarsh Ayachit. The ParaView Guide: A Parallel Visualization Application. Kitware, 2015. https://www.paraview.org.
3. Patrick M. Knupp, C. D. Ernst, D. C. Thompson, C. J. Stimpson, and P. P. Pebay. The Verdict Geometric Quality Library. SAND2007-1751, Sandia National Laboratories, 2006. https://www.osti.gov/servlets/purl/901967.

Downloads

The files below are served from the hovey/HybridOctree_Hex repository. Each checksum shows the first 12 hex characters of the sha256.

The .raw file lists one point that no triangle uses. The cleaned files drop that point and leave the surface unchanged. The repository also holds them as bone_tri_cleaned.raw, bone_tri_cleaned.off, and bone_tri_cleaned.obj.
