Representative Volume Element (RVE)

A heterogeneous material varies in its composition from point to point. A Representative Volume Element (RVE) is the smallest sample volume that still captures the bulk behavior. It reproduces the average physical and mechanical properties of the whole material.

This example uses a unit cube of bulk material. Three spherical pores sit in the interior. Cubit creates the geometry and the tetrahedral comparison meshes; see Reference for the journal file and Downloads for the files themselves.

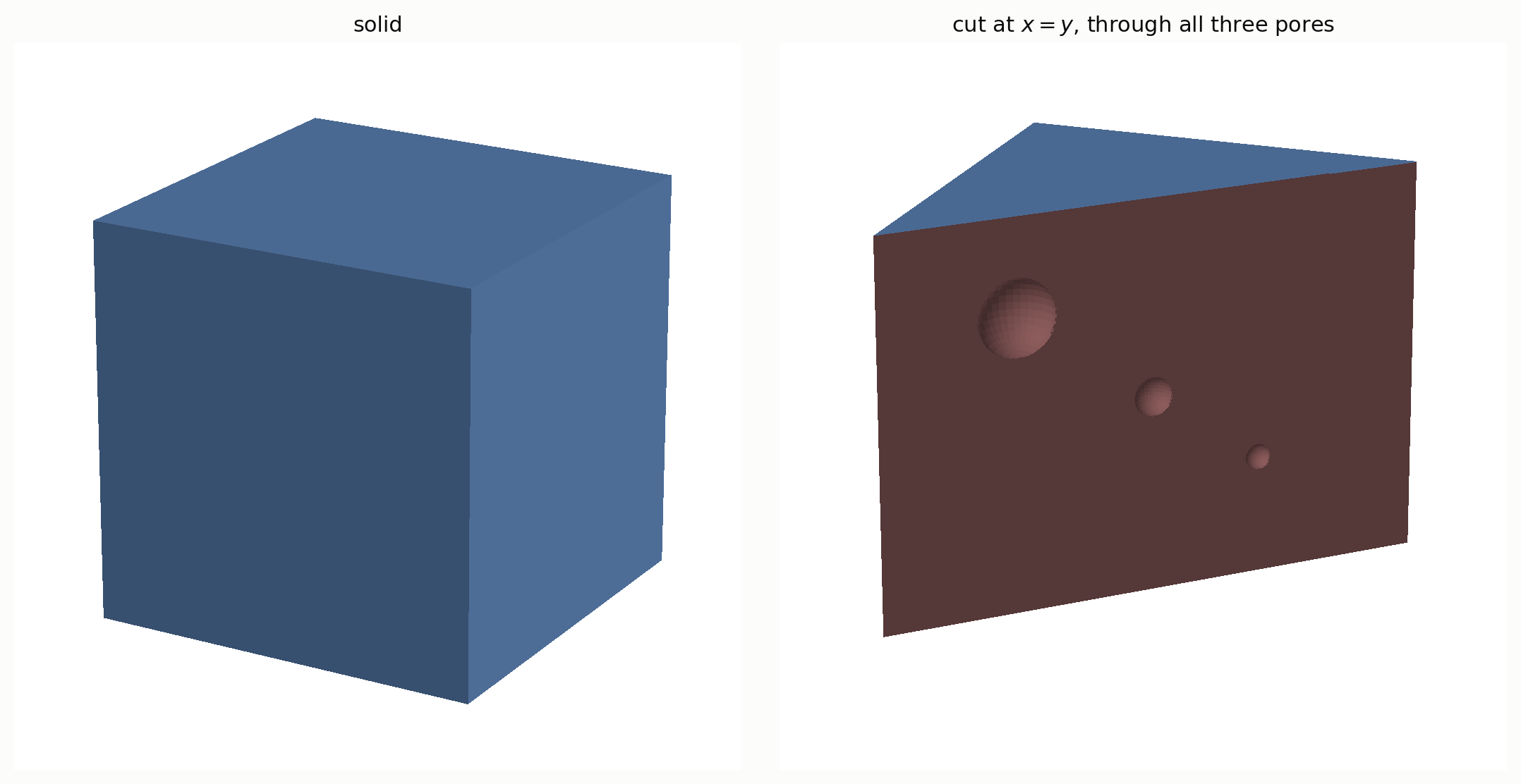

Figure: The RVE geometry. Left: the solid unit cube. Right: the same model cut at the plane $x=y$, which exposes all three pores. The pores have radii R/10, R/20, and R/30, and only the middle one sits at the origin. Their centers are collinear and all lie on the cut plane, so each pore is sliced through its center and appears as an exact circle. The figure is produced by rve_geometry_figure.py.

Cubit creates the tessellated surface comparison.stl, illustrated below.

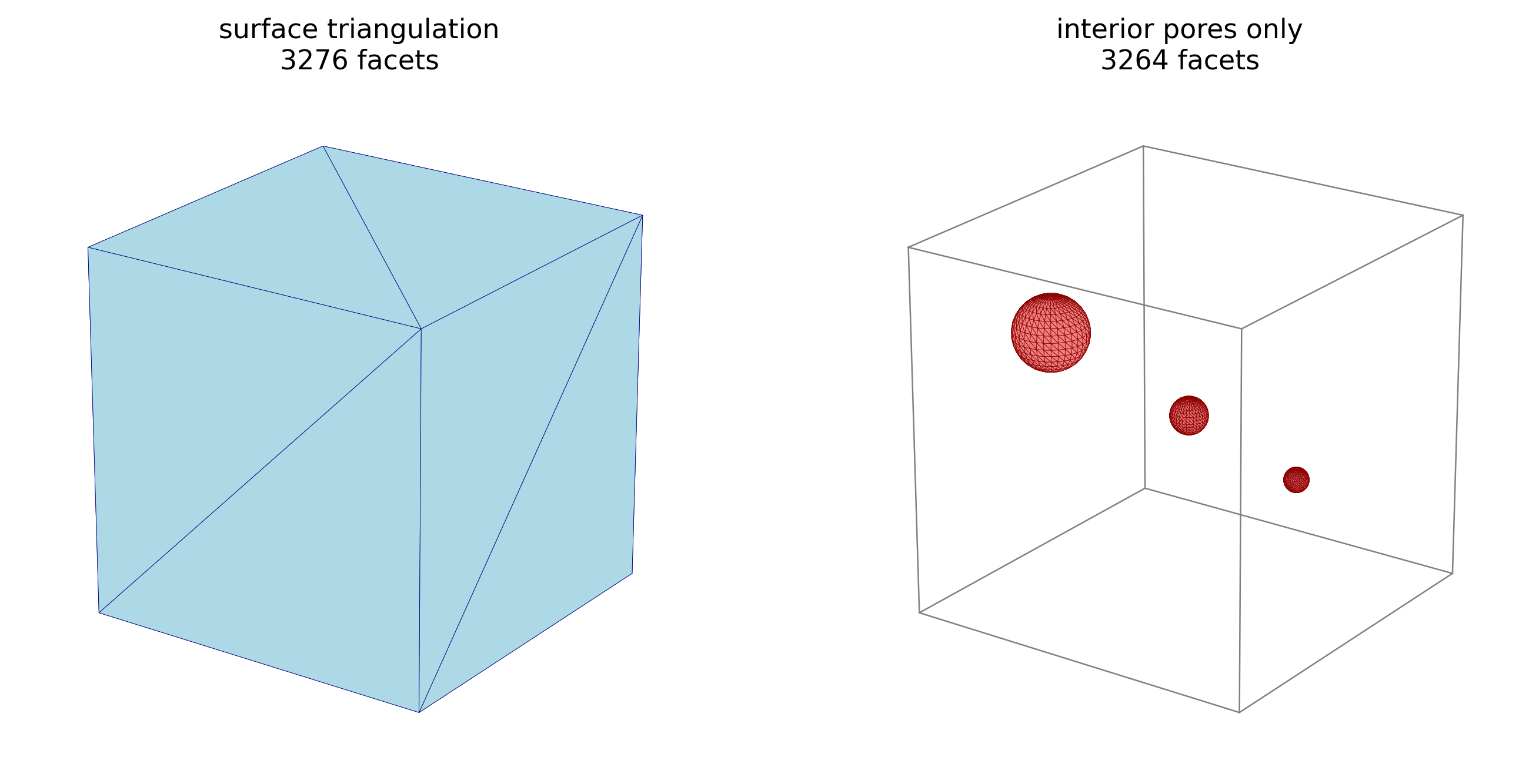

Figure: The comparison.stl surface, as exported by Cubit. Left: the full surface triangulation. Right: the interior pore surfaces on their own, drawn inside a wireframe of the cube. The journal exports the STL before meshing, so this is the geometry faceting rather than a mesh. The six planar cube faces need only two triangles each, which puts 3,264 of the total 3,276 facets on the three pores. The figure is produced by rve_figures.py.

Motivation

The existing approach meshes the RVE with tet4 or tet10 elements. The tet4 mesh appears in the Metrics figure below. The tet10 mesh is not shown separately: its corner nodes reproduce the tet4 mesh exactly, so the two are indistinguishable in a surface view.

The two tetrahedral meshes share the same 35,457 elements. The tet10 mesh adds a midside node on every edge, which raises the node count without changing the topology.

We would like to replace the incumbent tet4/tet10 approach with an adaptive, all-hexahedral mesh from automesh. The automesh hex mesh needs about half as many elements as the tet4 mesh. Its node count falls between the two tetrahedral meshes.

automesh Solution

1. Create an all-hexahedral volume mesh from the STL surface.

automesh mesh hex --input comparison.stl \
--output hexahedra.exo \
--scale 10 --tolerance 1e-3

This meshes adaptively, then buffers the hexahedra onto the geometry, yielding 17,350 elements and 19,056 nodes in about 3 seconds.

The Metrics figure below shows this mesh, both whole and cut through the pore centers, so the interior adaptivity is visible.

2. Metrics

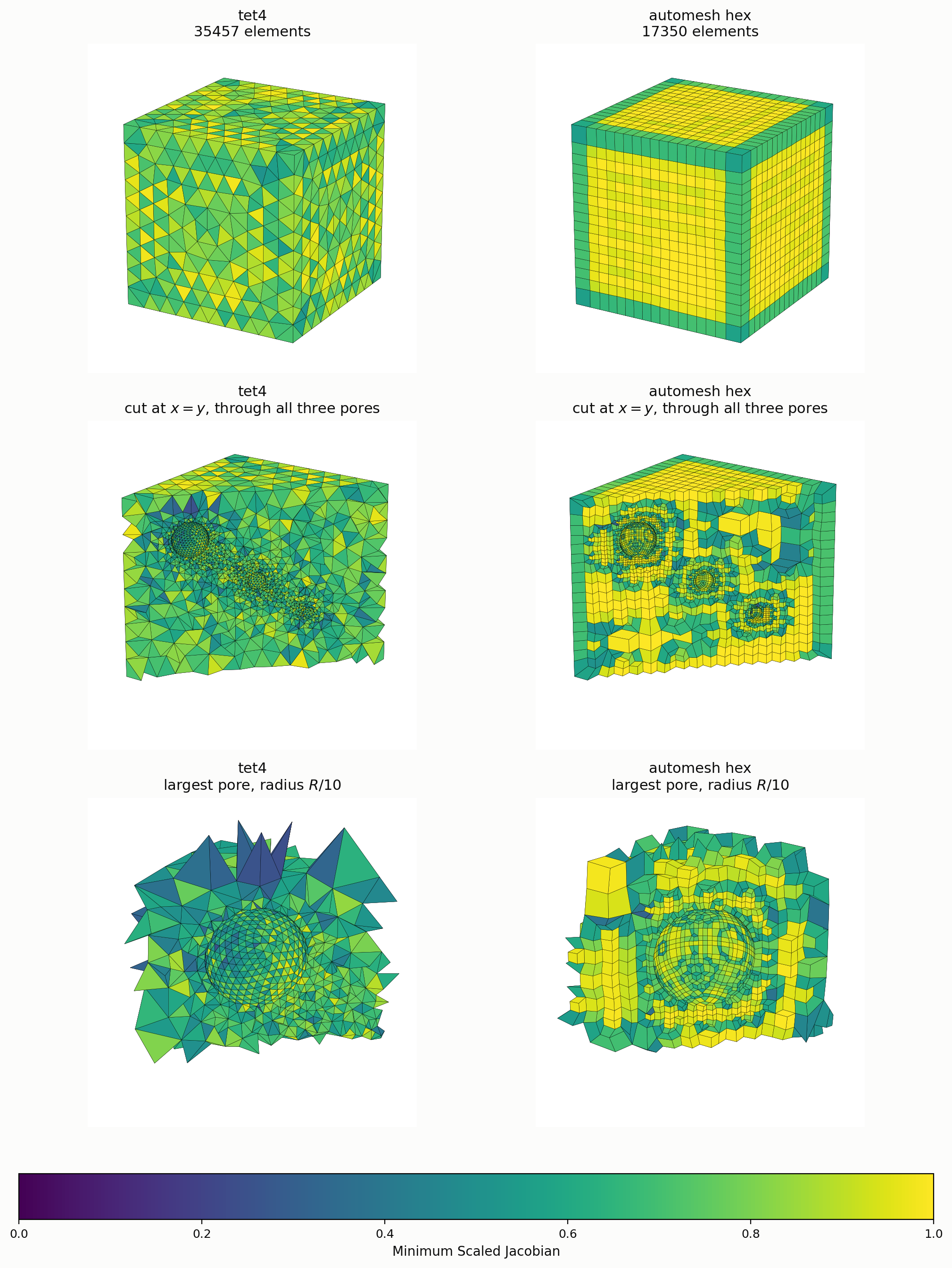

Figure: The tet4 and automesh hex meshes, painted by Minimum Scaled Jacobian on a fixed 0 to 1 scale, so the two are comparable by color. Top row: each mesh whole, seen from outside. Middle row: each mesh cut at the plane $x=y$. The three pore centers are collinear and all lie on that plane, so one cut passes through every pore. Bottom row: that same cut, zoomed on the largest pore, radius R/10. The middle and bottom rows share a camera facing the cut plane. Elements are kept or dropped whole, by centroid, which is what leaves the ragged fringe around the zoomed panels. The hex mesh refines toward the pores and holds near 1.0 through the bulk. The figure is produced by rve_mesh_figure.py, following the style of the autotwin/quality mesh renders.

automesh computes the same four quality measures for both meshes:

automesh metrics -i tetrahedra_4.exo -o tet4_metrics.csv
automesh metrics -i hexahedra.exo -o hex_metrics.csv

Figure: Element quality for the tet4 mesh (solid) and the automesh hex mesh (dashed). Minimum Scaled Jacobian top left, Maximum Aspect Ratio top right, Maximum Skew bottom left, Element Volume bottom right. Counts use a log scale. The figure is produced by rve_quality_histograms.py, which follows the style of the autotwin/quality histograms.

The hex mesh concentrates near the ideal on two of the four measures. Its scaled Jacobian piles up at 1.0, and its skew piles up at 0.0, whereas the tet4 mesh peaks near 0.45 and 0.30, respectively. The tet4 mesh holds the tighter aspect ratio, topping out near 3 while the hex mesh reaches about 4.5. Element volume separates the two most clearly. The hex mesh carries a long tail of larger elements, which is the adaptive coarsening away from the pores.

Reference

Cubit

Cubit builds the geometry and both tetrahedral meshes. The journal below reproduces comparison.stl, tetrahedra_4.exo, and tetrahedra_10.exo offered in Downloads.

#!cubit
reset

#{ R = 1 }
#{ R1 = R / 10 }
#{ R2 = R / 20 }
#{ R3 = R / 30 }
#{ THICKNESS = 10 }

create brick x 1 y 1 z 1
create sphere radius { R1 }
move volume 2 location {-1/4} {-1/4} {1/4}
create sphere radius {R2}
create sphere radius {R3}
move volume 4 location {1/5} {1/5} {-1/5}
subtract volume 2 from volume 1
subtract volume 3 from volume 5
subtract volume 4 from volume 6
export stl "comparison.stl" fast overwrite

block 1 add volume all
volume all scheme tetmesh
surface 1 2 3 4 5 6 size { 1 / THICKNESS }
surface 10 11 12 size { R / 60 }
mesh volume all
export mesh "tetrahedra_4.exo" overwrite
block 1 element type tetra10
export mesh "tetrahedra_10.exo" overwrite

Downloads

The files below are served from OneDrive/automesh/data/RVE. The first three come from Cubit and are the inputs to this example. The last three are produced by automesh from those inputs, using the commands on this page, and are offered so a reader can skip straight to the results. Each checksum below shows the first 12 hex characters of the sha256.
