Conforming versus Segmented Meshes

We define a conforming mesh as a traditional finite element mesh that has nodal placement on the boundary of the geometry approximated by the mesh. A conforming mesh has a piecewise approximation of the curvature on the boundary.

In contrast, a segmented mesh (also known as a voxelized or "sugar-cube" mesh) is composed of voxels that approximate the boundary in a "stair-step" fashion, with nodal placement fixed on a regular, uniform grid of cube-shaped elements. A segmented mesh has a stair-step approximation of the curvature on the boundary.

The spheres with shells meshes illustrate these two mesh types:

conforming	segmented

Both the conforming and segmented meshes approximate the true geometry: a sphere with concentric shells. Both approaches introduce error when used in finite element analysis in the calculation of quantities of interest, such as stress and strain.

We are interested in comparing the two methods, and quantifying what error the segmented approach introduces relative to the conforming approach.

For the spheres with shells example above, we were able to readily create two de novo meshes. There are instances, however, where a traditional, conforming finite element mesh exists, but a segmented version of the same geometry does not exist.

To create a segmented version of a conforming mesh, we created the segment command. Following are a examples using the segment functionality.

Recovering the Segmented Sphere

We use the [conf_0.5cm.g] file as our start point. see Mesh Creation and Visualization section for a download link. Our objective it to recover the segmented version of the model, shown above, using the segment command.

# Clone the .g to .exo
cp conf_0.5cm.g conf_0.5cm.exo

# Use automesh to convert the .exo to a .npy
# automesh segment hex -i conf_0.5cm.exo -o conf_0.5cm.npy -g 1 -s 0.5 -r 0
# automesh segment hex -i conf_0.5cm.exo -o conf_0.5cm.npy -g 2 -s 0.5 -r 255
# automesh segment hex -i conf_0.5cm.exo -o conf_0.5cm.npy -g 3 -s 0.5 -r 255
# automesh segment hex -i conf_0.5cm.exo -o conf_0.5cm_vox_orig.exo -g 2 -s 0.5 -r 255
automesh segment hex -i conf_0.5cm.exo -o conf_0.5cm_vox_orig.exo -g 2 -s 0.5

# why no .inp output? available
automesh convert mesh hex -i conf_0.5cm_vox_orig.exo conf_0.5_vox_orig.inp

# Investigate the `.npy` using Python
#
# ```python
# import numpy as np
# arr = np.load("conf_0.5cm.npy")
# values, counts = np.unique(arr, return_counts=True)
#
# values
#   array([  1,   2,   3, 255], dtype=uint8)
#
# counts
# #  array([ 31840,  11760,  10968, 207576])
# #  array([ 31960,  11760,  10968, 207576])
#   array([ 33072,  11648,  12800, 207576])
# print(counts)
# ```
#
# Create a segmented mesh from the `.npy` file
#
# ```sh
# automesh mesh hex -i conf_0.5cm.npy -o conf_0.5cm_vox.exo -r 255
# ```

RMU Brain Model

The RMU brain model, All_Hex_Dec, is a model of a human head. The model has 12 blocks composing the various anatomy of the head and brain, shown below.

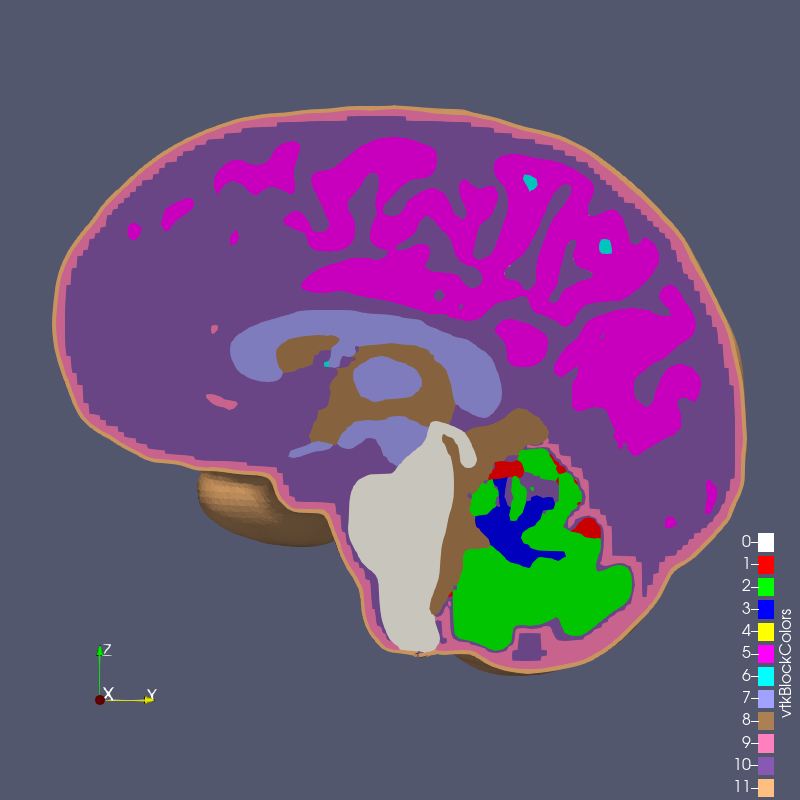

Figure: RMU brain model All_Hex_Dec.exo

With this conforming mesh, we create segmented meshes with the segment command, for example,

automesh segment hex --input All_Hex_Dec.exo --output test_3_0p8.exo --grid 3 --size 0.8

The output files have the naming convention test_x_y.exo where

• x is the grid number,
• y is the element length in mm,
• and 0p8 means 0.8 mm.

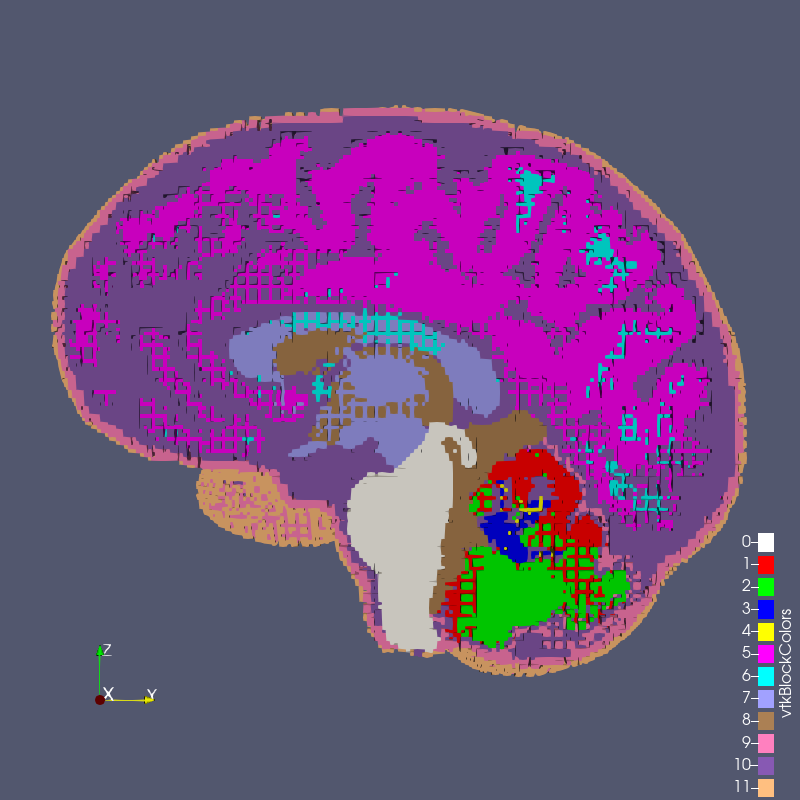

Figure: test_1_1.exo created with options --grid 1 --size 1

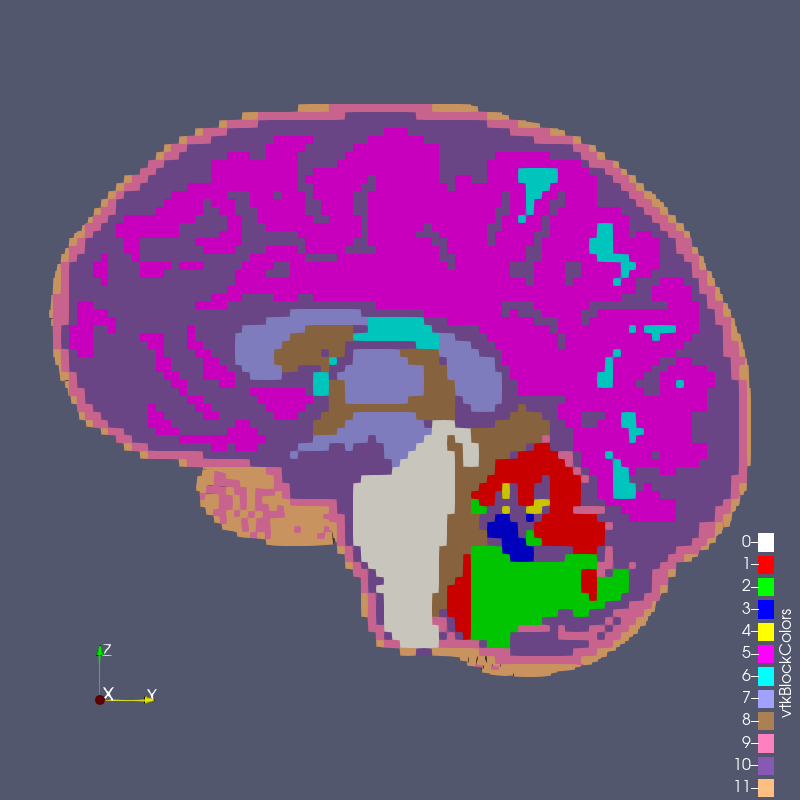

Figure: test_1_2.exo created with options --grid 1 --size 2

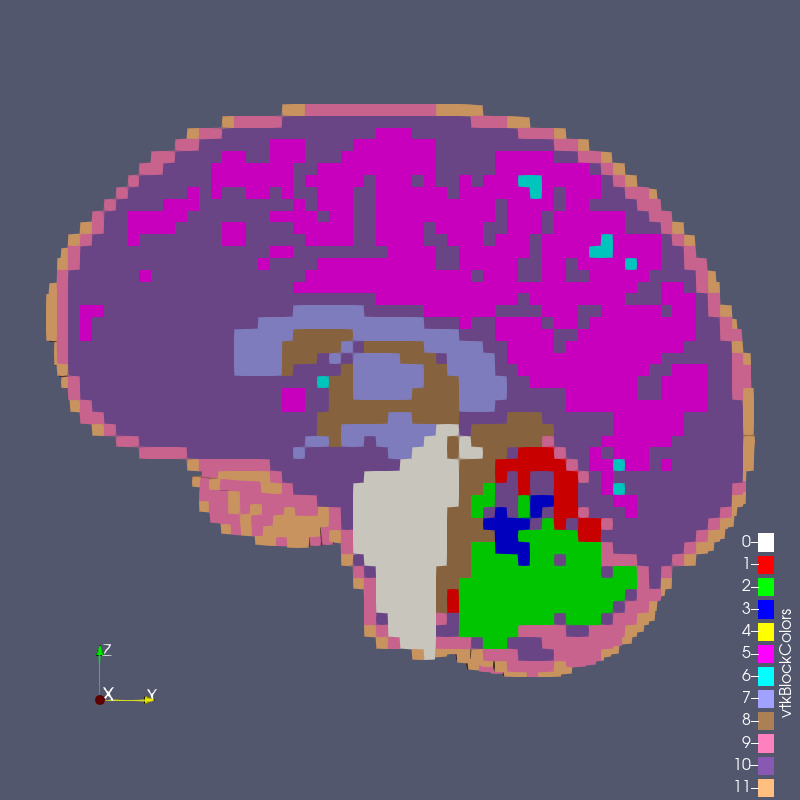

Figure: test_1_3.exo created with options --grid 1 --size 3

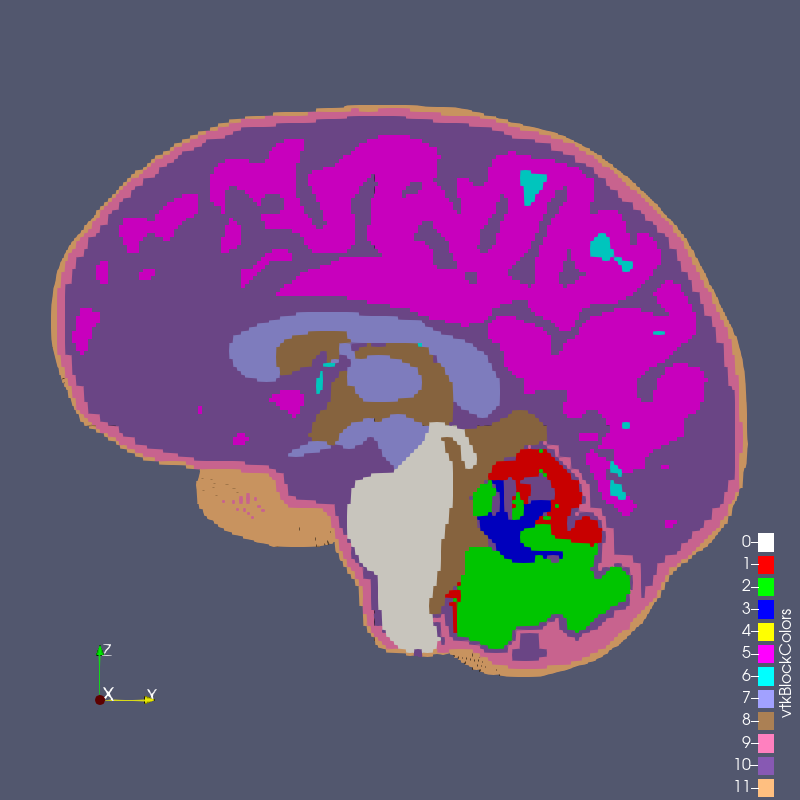

Figure: test_2_1.exo created with options --grid 2 --size 1

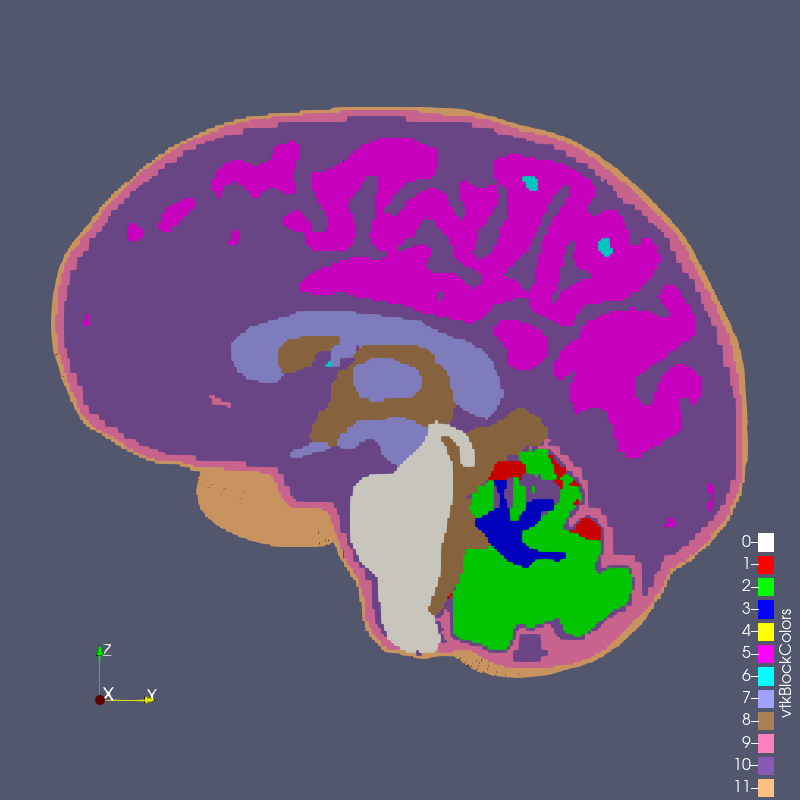

Figure: test_3_0p8.exo created with options --grid 3 --size 0.8

Comparison

All_Hex_Dec.exo	test_3_0p8.exo
